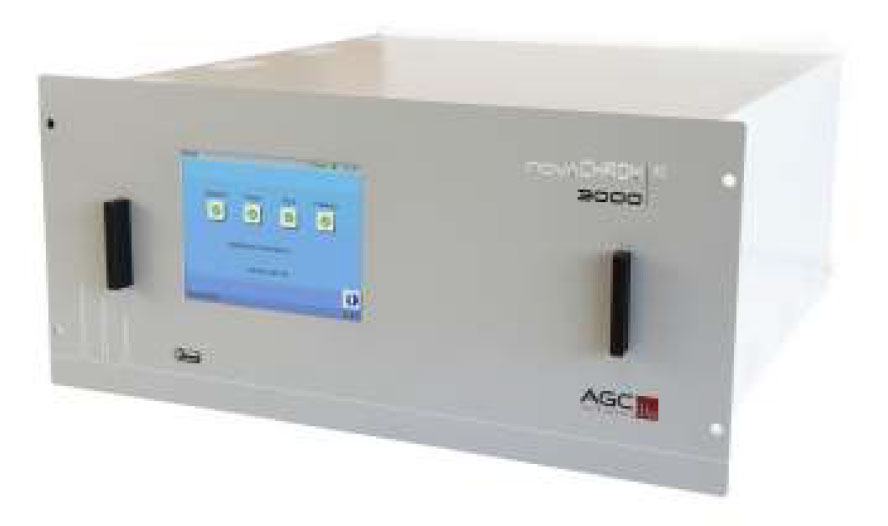

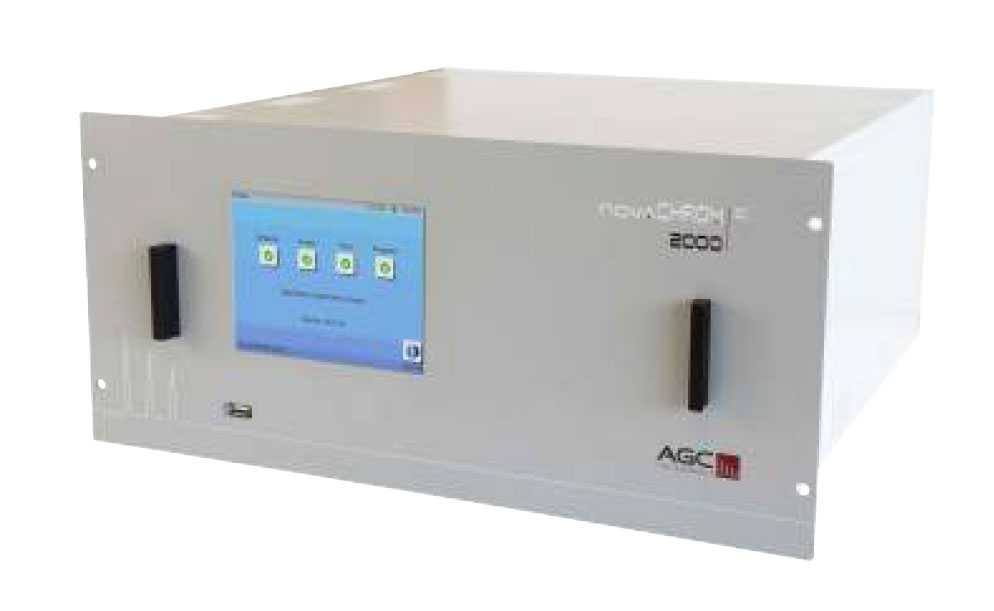

NovaCHROM 2000

Introducing the NovaCHROM 2000 system, specifically designed for the analysis of trace contaminants in an argon matrix gas. It uses our proprietary Argon Discharge Detector (ADD), which is a plasma emission detector that provides low concentrations of H2, O2, N2, CH4, CO, CO2, and N2O as part of quality control for argon sample air down to ppb levels.

This detector has also proven to be very effective in analyzing specific impurities in CO2 and is used at many CO2 production sites worldwide.

The NovaCHROM 2000 uses argon as the carrier gas, which offers many advantages over alternative methods.

The NovaCHROM family is an online GC solution with an interactive 6.5-inch color touch screen display and our electronic Flow & Pressure Management System. All parameters and readings can be easily viewed, ensuring ease of use and accessibility with minimal training required. The GC is easy to install and set up. Depending on the design configuration, it can be installed in a standard industrial rack cabinet.
We offer many unique features, including AGC's proprietary column ovens, in which each column is housed in its own independently temperature-controlled oven. This design, unique to AGC, ensures premium column temperature control and stability.

All connections on our NovaCHROM 2000 are 1/8" VCR compression fittings, so our piping (1/8" or 1/16") has an excellent sealing rate and is not expected to leak.

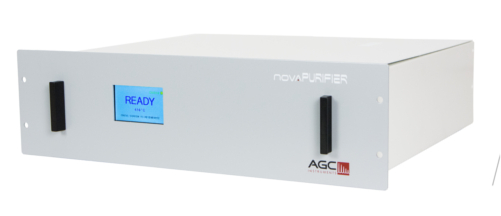

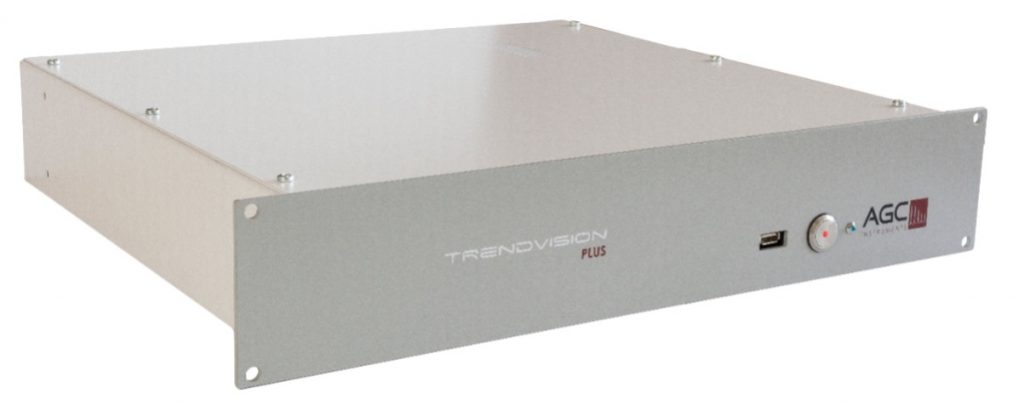

Combined with our NovaPURIFIER Argon Carrier Gas Purifier and our TrendVision PLUS software, this perfect solution delivers the results and standards you as a customer can expect.

NovaCHROM 3000

Introducing the NovaCHROM 3000 system, specifically designed for the quantification and identification of hydrocarbon-based components in a sample gas stream.

The NovaCHROM 3000 incorporates the latest GC technology based on the industry-proven Flame Ionization Detector (FID). This robust detector design, with which AGC Instruments has extensive experience, is suitable for both cost-effective and reliable gas analysis. Using state-of-the-art technologies, this GC provides customers with the accurate results they need when measuring and quantifying hydrocarbons.

The FID allows easy measurement of hydrocarbons in the ppm to ppb range with minimal training. Typical impurities range from C1, C2, C3, C4, C5, C6 and higher boiling points, including BTEX, depending on the application and background gas.

The NovaCHROM family is an online GC solution with a 6.5-inch color interactive touch screen display and our electronic Flow & Pressure Management System. All parameters and readings can be easily viewed, ensuring ease of use and accessibility with minimal training required. The GC is easy to install and set up. Depending on the design configuration, it can be installed in a standard industrial rack cabinet.

We offer many unique features, including AGC's proprietary column ovens, in which each column is housed in its own independently temperature-controlled oven. This design, unique to AGC, ensures premium column temperature control and stability.

All connections on our NovaCHROM 3000 are 1/8" Swagelok fittings, so our tubing (1/8" or 1/16") has an excellent seal rate and is not expected to leak.

Combined with our TrendVision PLUS software, this perfect solution delivers the results and standards you as a customer can expect.

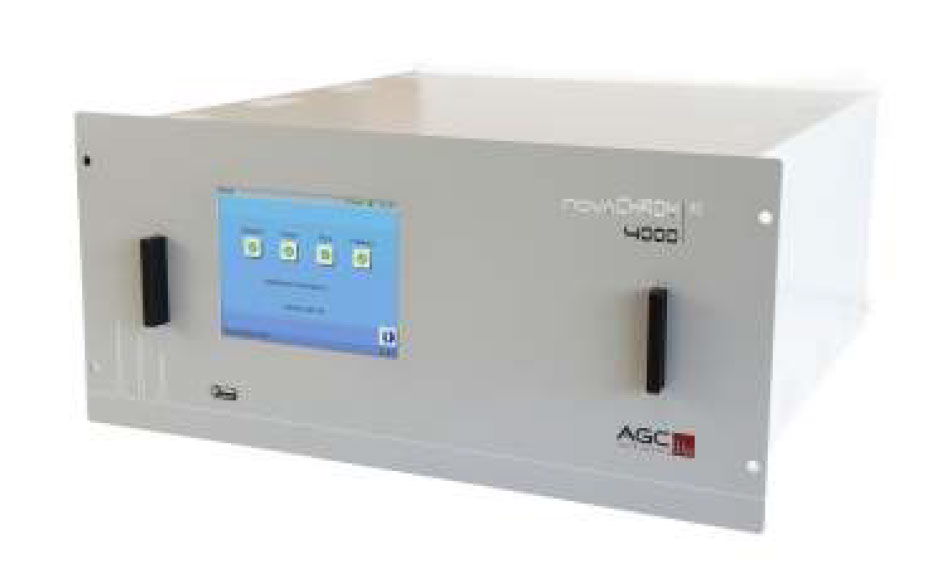

NovaCHROM 4000

Introducing the NovaCHROM 4000 system, which is ideal for permanent gas analysis and is both cost-effective and reliable due to its universal applicability.

The NovaCHROM 4000 incorporates the latest GC technology based on the use of an industry proven detector. The AGC Thermal Conductivity Detector (TCD) is world famous. As experts in this detector since 1965, we have developed many variations of the TCD to support both our own applications and those of other GC manufacturers around the world. We are proud to be able to make measurements from single ppm values up to 100% concentration. This universal detector has been a staple in our company for many years, and many other companies also use it as an OEM solution for their own applications.

The TCD is based on the Wheatstone bridge equation. It allows measurements in the ppm to % range with ease. Many dimensions and connection options are available, but we will select the most appropriate configuration for your specific application.

Typical impurities that can be observed include H2, Ar, O2, N2, CH4, CO, CO2, N2O, C2H2, Kr, Ne, Xe, CF4, C2F6, SF6, SiH4, SiH3Cl, SiHCl3, SiCl4, SiH2Cl2, etc., depending on the application and background gas.

The NovaCHROM family is an online GC solution with an interactive 6.5" color touch screen display and our electronic Flow & Pressure Management System. All parameters and readings can be easily viewed, ensuring ease of use and accessibility with minimal training required. The GC is easy to install and set up. Depending on the design configuration, it can be installed in a standard industrial rack cabinet.

We offer many unique features, including AGC's proprietary column ovens, in which each column is housed in its own independently temperature-controlled oven. This design, unique to AGC, ensures premium column temperature control and stability.

All connections on our NovaCHROM 4000 are 1/8" Swagelok fittings, so our tubing (1/8" or 1/16") has an excellent seal rate and is not expected to leak.

Combined with our TrendVision PLUS software, this perfect solution delivers the results and standards you as a customer can expect.

NovaCHROM 5000

Introducing the NovaCHROM 5000 system, specifically designed for the quantification and identification of sulfur-based components in a sample stream.

The NovaCHROM 5000 incorporates the latest GC technology based on the industry-proven Flame Photometric Detector (FPD). This robust detector design, with which AGC Instruments has extensive experience, is ideal for cost-effective and reliable gas analysis. Using the latest advanced technologies, this GC provides customers with the accurate results they need when the measurement and quantification of sulfur compounds are required.

Typical impurities include H2S, SO2, COS, CS2, methyl mercaptans, ethyl mercaptans.... etc., depending on the application and background gas.

The NovaCHROM family is an online GC solution with 6.5" color interactive touch screen display and our electronic flow and pressure management system. All parameters and readings can be easily viewed, ensuring ease of use and accessibility with minimal training required. The GC is easy to install and set up. Depending on the design configuration, it can be retrofitted into a standard 19"/5U industrial rack cabinet.

We offer many unique features, including AGC's proprietary column ovens, where each column is housed in its own independently temperature controlled oven. This design, unique to AGC, ensures premium column temperature control and stability.

All fittings on our NovaCHROM 5000 are 1/8" Swagelok fittings, which means our piping (1/8" or 1/16") has an excellent seal rate and is not expected to leak. Because they are specifically designed for sulfur compounds, all piping is resistant to these components, and we always ensure that we meet the specific requirements of these reactive compounds.

Combined with our TrendVision PLUS software, this perfect solution delivers the results and standards you as a customer can expect.

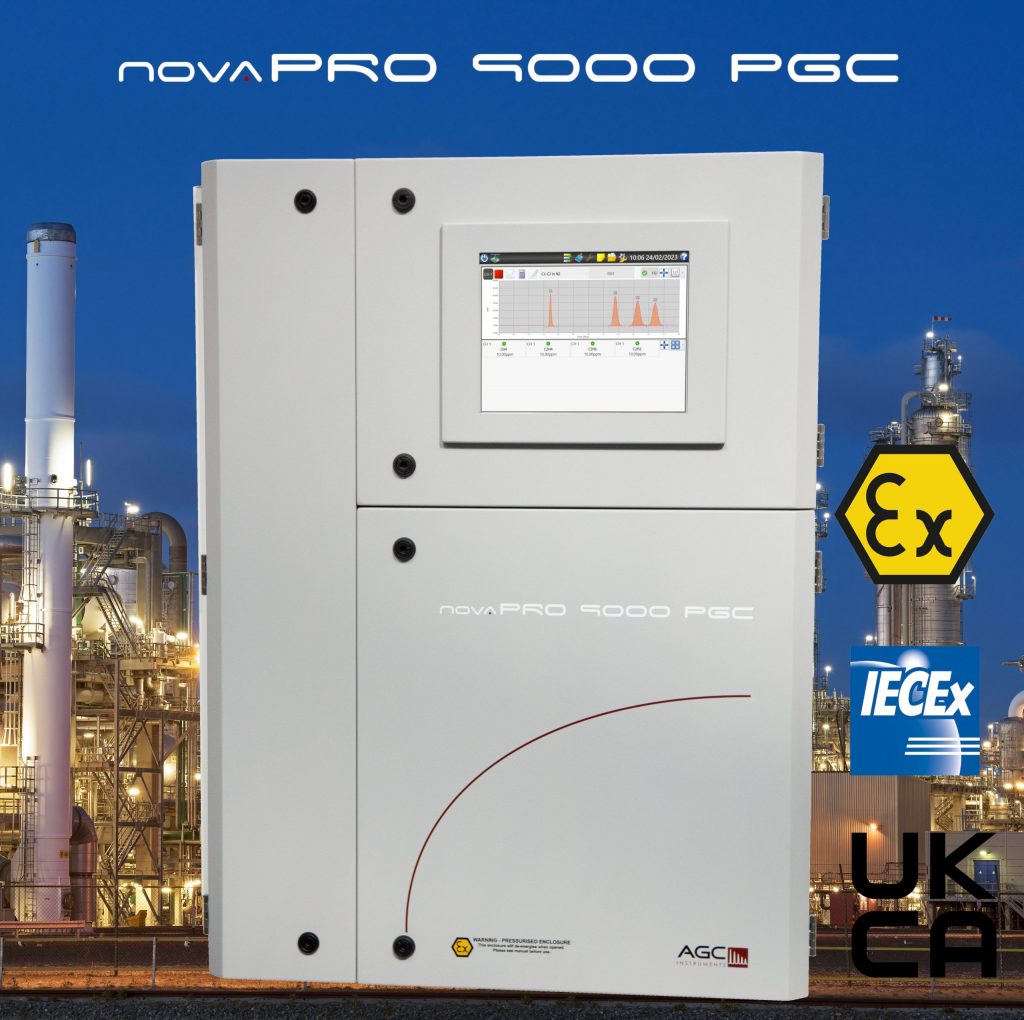

NOVAPRO 9000 PROCESS GAS CHROMATOGRAPH

Introducing the latest online gas chromatograph for the process market from AGC Instruments.

The NovaPRO 9000 Process Gas Chromatograph (PGC) utilizes the most advanced technology and systems available. This advanced PGC offers customized solutions for a wide range of industries, providing 24-hour monitoring and reporting on demand. Accuracy levels are achieved with our range of proven detectors perfected over 50 years of experience.

Utilizing a pressurization method (Ex p), this Ex approved PGC is housed in a steel enclosure that is purged for use in the harshest environments and is suitable for use in Zone 1 and 2 classified areas.

This pressurized enclosure complies with IECEx and ATEX standards and is a versatile and customized solution where AGC brings over 50 years of gas chromatography experience to this market sector. It uses a 12-inch color touch screen with integrated electronic controller and is operated via a menu-driven software interface. The versatility and efficiency demonstrated are unsurpassed, and all data is generated in real time as chromatograms, digital panel meters or trend lines.

The system that operates and communicates with the NovaPRO 9000 is a highly intelligent platform carefully developed through interaction with our customers. Based on the professional embedded operating system and running on a robust industrial embedded computer solution, the TrendVision PRO chromatography software controls all aspects of the analytical and reporting requirements.

A wide range of analytical capabilities are available with the NovaPRO 9000 process GC, based on the extensive experience of the AGC Instruments team of engineers. Comprehensive support and world-class after-sales support are paramount for all AGC product lines and are guaranteed with every NovaPRO 9000 PGC.

Up to two detectors can be configured into a NovaPRO 9000 PGC system. The choice of detectors includes TCD, FID, FPD or DID. Additional detectors will be added in due course. The applications are limitless and most of our PGC solutions are found in markets such as hydrogen, Hy/CO, iron and steel, petrochemical, natural gas, syngas, coke gas, refinery, etc.

Using the years of experience in GC technology that AGC Instruments has acquired, we have taken our many unique offerings and integrated them into the NovaPRO 9000 PGC.
